Applications:

  • The Ideal partner for all routine rotary vacuum evaporation's at Universities, Colleges, Schools, small to mid size Companies, and as a standby unit.

EVATOR Advantages:

  • Spark-less drive unit AC motor with assured speed regulation.
  • Flask sizes from 100 to 1000 ml.
  • Digital Temperature Controller for Water Bath.
  • PTFE / glass sealing mechanism.
  • Smooth, adjustable, maintenance free and user friendly single lever manual lift.
  • Vertical Glass Set with 1000 ml B29 Evaporating Flask & 1000 ml S35 Receiving Flask, B29 plastic C Clip & S35 Ball Joint Clip.
  • Flask ejector for easy removal of evaporating flask.

Model Product Gross Dimension / Weight

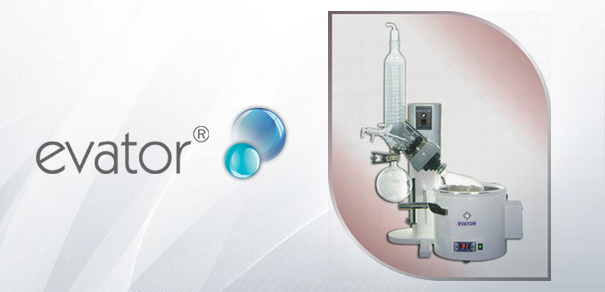

#EV11 EVATOR Rotary Evaporator – with Vertical Glass set 990 x 760 x 860 mm / 68 kg

Optional Accessories / Spares:

Chilled Water Circulator – Manual

  • Cooling with Ice
  • Reservoir capacity 20 liters
  • Pumping @9 LPM at zero head
  • Power Supply 230 VAC

Model Product Gross Dimension / Weight
#8930.X00.000 Chilled Water Circulator - Manual 530 x 530 x 550 mm / 8 kg

Vacuum Pump - PTFE coated diaphragm - 35 mbar

  • PTFE coated diaphragm pump, manufactured with German technology
  • Supplied with solvent trap


Model Product Ultimate Vacuum Max air displacement Gross Dimension / Weight
#9072.035 Vacuum Pump 35 mbar 38 LPM 400 x 300 x 350 mm /
14 kg

Vacuum Controller – Analogue

  • Large analogue vacuum gauge – range 0~760 mm of Hg
  • Fine control by stainless steel manual bleed valve
  • Can be mounted on bracket or table top

Model Product Gross Dimension / Weight
#8925.REG.760 Vacuum Regulator – Analogue 0~760 mm Hg 440 x 400 x 330 mm / 3.4 kg

Round Oil Bath - Digital

  • Suitable for Oil with temperature range upto 180°C
  • Ø230 x 130 mm SS inner body with energy efficient contoured bottom
  • SS tubular immersion heater

Model Product Gross Dimension / Weight
#8483IS-DWO Round Oil Bath - Digital 440 x 400 x 330 mm / 5.2 kg

Tubing’s Set

  • PVC tubing’s for water circulation of 3 met length – 2 nos
  • Tap adapter – 1 no for connecting to normal tap
  • NBR pipe for vacuum connection


Vacuum Trap

  • Used for trapping uncondensed solvent vapours prior to vacuum source and / or controller.
  • Built-in high surface area cooling coils for circulation of chilled water
  • Made of Borosilicate glass

CAP/ITEM Evator Evaporating flask B-29 Receiving flask S-35
50 ml #S1315-05 #S1316-05
100 ml #S1315-10 #S1316-10
250 ml #S1315-15 #S1316-15
500 ml #S1315-20 #S1316-20
1000 ml #S1315-25 #S1316-25
2000 ml #S1315-30 #S1316-30
3000 ml #S1315-35 #S1316-35

For more details, please send a request on: sales@medicainstrument.com
